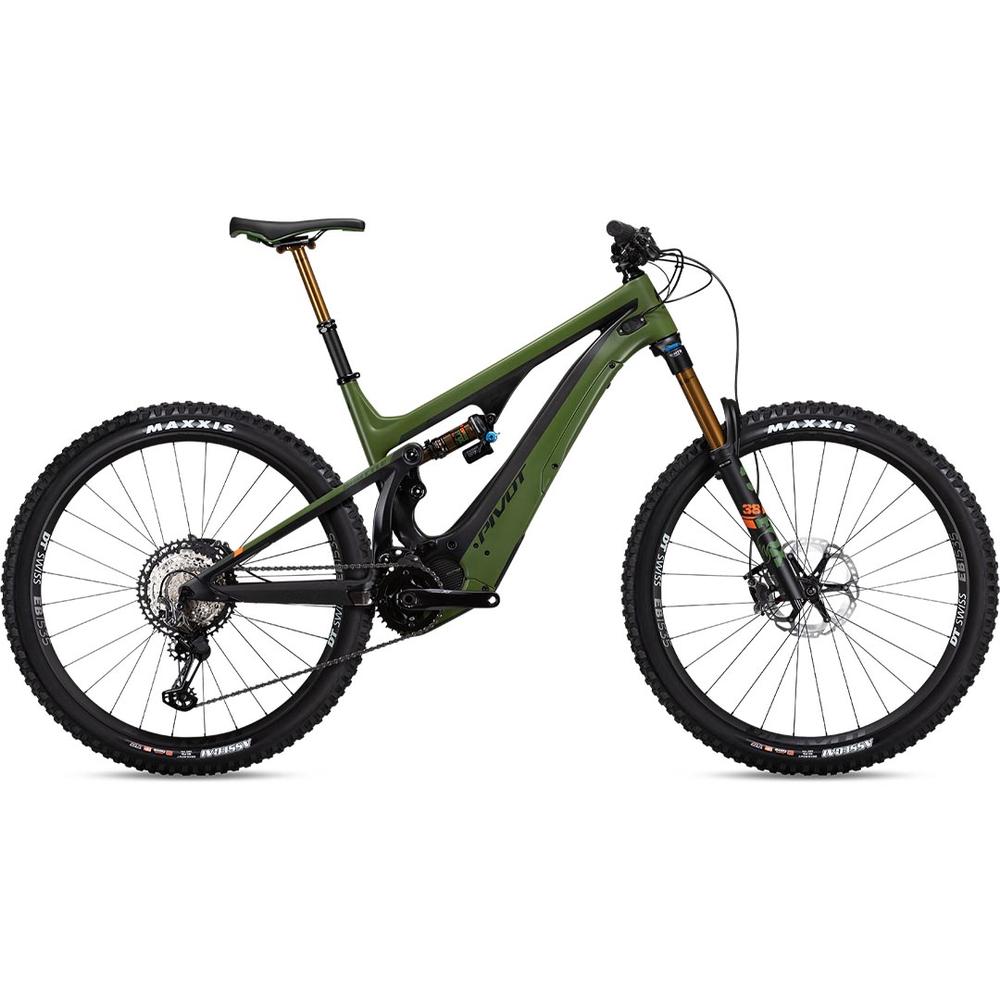

Pivot Shuttle eMTB Carbon 29" Team XTR Mountain Bike: Potential, Realized.
The Shuttle redefined electric assist mountain biking. Sleek, lightweight, capable, beautifully crafted, with the motor and battery seamlessly integrated into its design, the Shuttle ushered in a whole new way of riding. Now, the redesigned Shuttle has the juice to take your riding even further. A sophisticated carbon fiber chassis houses an equally sophisticated Shimano EP8 drive unit and a massive 726 Wh battery. Progressive geometry, highly evolved dw-link suspension and a brawny Fox 38 fork offer unmatched suspension performance and handling. The Shuttle has the power to take you where you dream of going, and give you the ride of your life getting there and back.
The Power To Go Big
The 726 Wh battery demolishes old expectations about range, and gives you the power to ride longer, explore deeper. Shimano’s EP8 drive unit is incredibly efficient, extending battery life even further. Our uniquely adapted battery features a new two bolt release system, making battery swaps or off-the-bike charging a snap. An ergonomic power button and discreet charging port are cleanly integrated into the Pivot Cable Port System for an elegant and simple interface. Now you can boost more without worrying about battery life, and really stretch those long rides out.
The Ultimate Edge
Shimano’s EP8 is lighter, quieter, and more powerful than its predecessor. This next-level drive unit is perfectly matched with the Shuttle’s suspension design. The dw-link's legendary pedaling efficiency extracts every last ounce of effort from each assisted pedal stroke, regardless of how much assist the motor is providing. The dw-link suspension and metric Fox DPX2 shock provides 140 mm of plush, controlled performance, matched with a stout, 160mm travel Fox 38 fork. Chassis, suspension, motor, and battery integrate together at the pinnacle of eMTB evolution, setting you free to expand your limits on the trail, wherever and however you like to charge.
KIT - TEAM XTR 29", MEDIUM FRAME, DEFENDER GREEN
WHEEL SIZE: 29"
REAR SHOCK: Fox Factory Float DPX2
FORK: Fox Factory E-MTB 38 29", 44mm offset, GRIP2 - 160mm
HEADSET: Pivot Precision Sealed Cartridge
REAR DER: Shimano XTR SGS 12-Speed
SHIFTER: Shimano XTR M9100 12-Speed
BRAKES: Shimano XTR M9120 4-piston
CRANKSET: Shimano XT M8150 w/ Shimano E-MTB 34t
DRIVE UNIT: Shimano Steps DU-EP800
HANDLEBAR: Phoenix Team Low Rise Carbon
GRIPS: Phoenix Factory Lock-On
STEM: Phoenix Team Enduro/Trail
SEATPOST: Fox Transfer Factory Series 125mm (SM), 150mm (MD-LG), 175mm (XL)
SADDLE: Pivot Pro E-Bike
CASSETTE: Shimano XT M8100 10-51t
WHEELS: DT Swiss EB 1535, 30mm - 29" 15x110 F/12x157 R
TIRES: Maxxis Assegai DHF 29" x 2.5" TR, EXO+, 3C / Maxxis Minion DHRII 29" x 2.4" TR, MAXXTERRA, EXO+, 3C
ROTOR: Shimano XT MT-800 CenterLock - 203mm / Shimano MTE-800 CenterLock - 180mm
CHAIN: Shimano CN-M8100 12-Speed
GEOMETRY & SIZING: Large Frame
Seat Tube Length: 42.4 cm
Top Tube Length: 62.0 cm
Head Tube Length: 12 cm
Head Tube Angle: 64.3°
Seat Tube Angle: 74.0°
Chainstay Length: 44.1 cm
Bottom Bracket Height: 35.8 cm
Standover: 71.50 cm
Wheelbase: 121.4 cm
Stack: 62.4 cm
Reach: 44.0 cm
